PCB (Printed Circuit Board) Business

We handle a wide range of needs, including prototyping for research and development, evaluation boards, OEM board supply, mass production boards, etc. We design logic circuits and handle artwork design and beyond in-house with our partner companies to provide the products our customers require.

We also carry out FPGA design using the technology we have cultivated in ASIC development, as well as embedded software development in-house, and can provide the software after mounting it at the same time as delivering the board.

Furthermore, we can check not only the continuity of the delivered board, but also input power and check simple functional operation as necessary. We also have various evaluation devices for this purpose.

Please call us first

Our company's distinctive feature is that we have a track record of delivering special boards, such as high-frequency compatible boards , flip-chip mounting of bare chips directly onto boards, and wire bonding mounting.

First, please tell us what you want to achieve and we will suggest how we can make it happen.

We can also manufacture circuit boards using circuit design data and artwork design data provided by our customers.

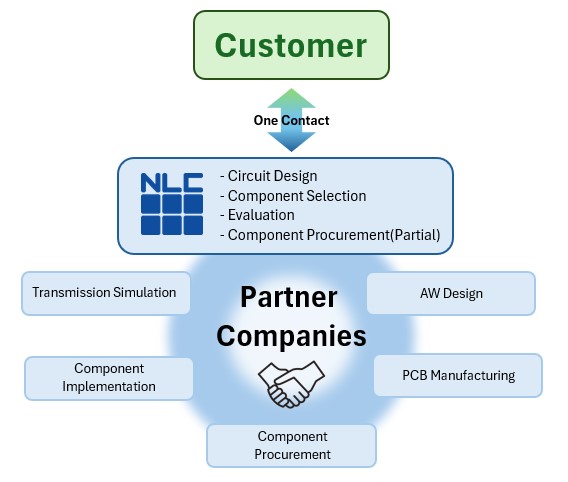

Development Structure

  • We will handle everything with one point of contact for our customers.

  • We will collaborate with our partner companies to make proposals based on our customers' needs.

お客様とワンコンタクトで対応。NLC：回路設計、部品選定、評価、部品調達（一部）。パートナー企業：AW設計、伝送路シミュレーション、基板製造、部品調達、部品実装。



Available Supply Formats

  • Prototype support

  • OEM Supply

  • Mass production available

Delivery Record

  • CMOS sensor barcode reader module board
    （　1D, 2D (QR) compatible, OEM supply　）

  • Circuit board for smart house devices
    （　with Bluetooth communication function, OEM supply　）

  • Demo board for power line communication module
    （　including housing, manufacturing and prototyping available　）

  • High frequency compatible bare chip evaluation board
    （　Low dielectric material application, flip mounting compatible, prototype compatible　）

  • In addition, we also support many other products such as IC evaluation boards and CMOS sensor module boards.

Features

  • We can manufacture boards using low dielectric substrates.

  • Narrow pitch mounting is possible .

  • Bare chips can be mounted by flip mounting or wire bonding.

  • Implementation possible together with FPGA design and embedded software

Measuring equipment in stock

  • Spectrum analyzer (Anritsu: MS2830A)

  • Mixed Domain Oscilloscope (Tektronix: MDO3104)

  • Digital oscilloscope (Tektronix: DPO4054)

  • Logic analysis system (Agilent: 16903A)
